Flexible Graphite Spiral Wound Gasket, ASME B16.20, 4IN, CL150

Key Specifications / Features

Model No.: FGBK-23-G-37 Hits: 0

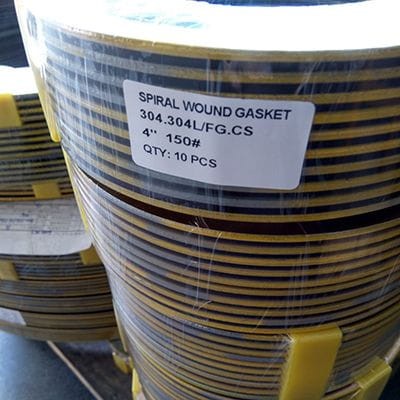

Introducing our Flexible Graphite Spiral Wound Gasket, provided by a trusted supplier. This high-quality gasket adheres to ASME B16.20 standards and is designed for 4-inch pipes with a Class 150 LB pressure rating. It features a Stainless Steel 304 inner ring, a Carbon Steel outer ring, and a Stainless Steel 304L hoop for enhanced performance.
Request a quote

Detail Information


Product Name: Flexible Graphite Spiral Wound Gasket
Type: Spiral Wound Gasket With Inner and Centering Ring
Standard: ASME B16.20
Size: 4 Inch, DN100
Material: SS 304 Inner Ring, SS 304L Hoop with FG Filler, Carbon Steel Outer Ring
Pressure: Class 150 LB, PN20
Filler: Flexible Graphite
