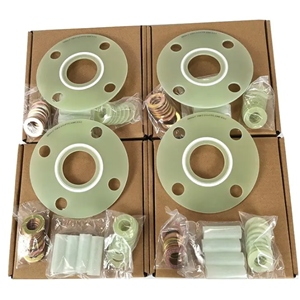

Technical Manual for Proper Installation of Flange Gaskets: Practical Points from Selection to Leak Detection
The correct installation of flange gaskets is crucial for ensuring tight sealing and reliable operation of pipeline systems. If installed improperly, it may lead to equipment failure, safety hazards, and high downtime losses. This guide provides a detailed step-by-step installation process for flange gaskets and offers recommendations for selecting gasket types based on different application requirements.
Step 1: Choose the appropriate gasket type
Common types of flange gaskets include rubber gaskets, PTFE gaskets, PTFE F4 rubber composite gaskets, metal wound gaskets, oval gaskets, octagonal gaskets, pure fiber gaskets, and metal groove gaskets. Among them, the application of metal wound gaskets is the most extensive, so it will be the focus of this introduction.
Metal wrapped gaskets are semi-metallic sealing components designed specifically for flange connections under medium to high pressure and high temperature conditions. The manufacturing process involves alternately spiral winding V-shaped or W-shaped metal strips with flexible filling materials such as graphite and polytetrafluoroethylene, which gives it excellent elasticity and sealing performance. According to specific application requirements, additional inner and/or outer rings can be added to further enhance the stability and sealing effect of the gasket.
Step 2: Clean the flange surface
Pollutants such as rust, residual old gaskets, or oil stains can damage the sealing effect and cause leaks. Please follow the steps below to complete the cleaning work:
Use a wire brush or plastic scraper to remove impurities (avoid using metal tools to prevent scratching the flange surface).
Use acetone or suitable industrial solvents to remove oil from the surface.
Check for damage to the flange: If the flange is warped or scratched, it must be repaired before installation.
Expert Tip: According to data from the Fluid Sealing Association (FSA), 70% of flange leakage problems are caused by improper surface pre-treatment.
Step 3: Accurately locate the flange gasket
Align the center of the gasket with the flange hole, and then gently place the gasket between the two flanges.
Unless explicitly requested by the gasket manufacturer, no glue or adhesive shall be used.
For gaskets with locating rings, it is necessary to ensure that the locating ring is accurately embedded in the flange groove.
Importance statement: As pointed out in the journal "Pumps and Systems", gasket positioning deviation can lead to uneven compression, which can directly cause leakage.
Step 4: Bolt installation and tightening
Thread the bolts into the flange holes in diagonal order (this method ensures even pressure distribution).
Gently tighten the nut to secure the gasket, but no final torque needs to be applied at this time.
Use a torque wrench to gradually tighten the bolts in a staggered order: apply 30% of the recommended torque first, then 60%, and finally reach 100%.
Best practices supported by data: Research published in the International Journal of Pressure Vessels and Pipelines shows that proper bolt tightening can reduce the risk of leakage by 90%.
Step 5: Conduct leak detection
Leak detection can be achieved through air pressure testing (observing bubbles) or water pressure testing (checking for drops), both of which can visually identify the leak point.
For leaks that are highly concealed and difficult to detect directly, ultrasonic testing equipment can be used.
Conclusion
The correct installation of flange gaskets is the key to ensuring system safety, operational efficiency, and cost-effectiveness. If you need high-quality gaskets (including rubber gaskets, PTFE gaskets, PTFE F4 rubber composite gaskets, metal wound gaskets, oval gaskets, octagonal gaskets, pure fiber gaskets, metal groove gaskets), please feel free to contact us. We will provide you with a reliable solution that meets certification standards and is tailored to your needs!
