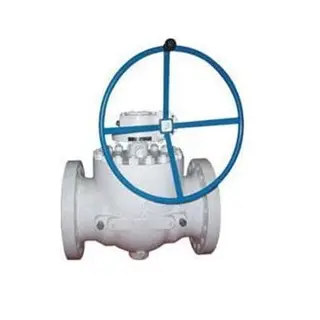

API 6D Trunnion Mounted Ball Valve, 2-48 Inch, Flanged, BW
Key Specifications / Features
Model No.: FGBK-23-V-07
Hits: 2
Discover precision engineering with our API 6D Trunnion Mounted Ball Valve Manufacturer in China. Specializing in valves conforming to ANSI B16.34 standards, these valves are available in sizes ranging from 2 to 48 inches and with Class 150-2500 LB ratings. Crafted from Carbon, Stainless, Alloy, and Duplex Steel, our trunnion mounted ball valves offer versatility. Available with both Flanged and Butt Weld (BW) ends, trust our Chinese manufacturer for top-notch production of reliable and robust valves tailored to meet your specifications.
Request a quote
Tags
Detail Information
Product Name: API 6D Trunnion Mounted Ball Valve
Size Range: 2", 2-1/2", 2.5", 3", 3-1/2", 3.5", 4", 5", 6", 8", 10", 12", 14", 16", 18", 20", 22", 24", 26", 28", 30", 32", 34", 36", 38", 40", 42", 44", 46", 48" (2-48 Inch, DN50-DN1200)
Pressure Range: Class 150, 300, 400, 600, 900, 1500, 2500 LB, PN20-PN420
Operation: Gear, Motor
Valve End: Flanged, BW
Standard: API 6D
Design Standard: ANSI B16.34
Pressure Test: API 598
Face To Face Length Standard: ANSI B16.10, DIN 3202, According to the Client Requirement
Fire Safe Design: API 607
Material: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Field of Use: Oil, Crude Oil, Petroleum, Natural Gas, Water, Offshore, Power, Pipe Projects.
