Spiral Wound Gaskets: Engineering Marvels Powering Diverse Industries
On this page
Spiral wound gaskets stand as a pinnacle sealing solution, demonstrating remarkable versatility and widespread adoption across industries. Particularly revered in the oil and gas, petrochemical, and power generation sectors, their unique design and superior sealing capabilities have made them indispensable. This article delves into the intricacies of spiral wound gasket construction, highlighting key components and providing real-world engineering cases to underscore their reliability.
Spiral wound gaskets are a type of mechanical seal used in industrial applications to prevent leakage between two joined objects under compressive loads. These gaskets are commonly used in flanged connections, where they provide effective sealing in high-temperature and high-pressure environments. The key components of spiral wound gaskets include:
1. Metallic Winding Strip
2. Filler Material
3. Outer Guide Ring
The construction of a spiral wound gasket initiates with the winding of the metallic strip and filler material. This process involves bending the strip at a specific angle, placing the filler material between layers, and continuously winding to create a spiral configuration. The number of layers and thickness are tailored to meet the application's unique requirements. Post-winding, the outer guide ring is affixed through methods like welding, crimping, or adhesive application, ensuring compliance with industry standards through rigorous quality inspections and testing.
Petrochemical Plant Heat Exchangers: Spiral wound gaskets showcased their reliability in heat exchangers, ensuring efficient heat transfer by withstanding high temperatures, pressures, and aggressive chemicals.
Power Generation Steam Valves: Sealing high-pressure steam valves in a power generation facility, spiral wound gaskets demonstrated resilience under extreme conditions, maintaining a tight seal for safe and efficient plant operation.
Nuclear Reactor Primary Coolant Loop: Deployed in the nuclear industry, spiral wound gaskets sealed the primary coolant loop of a reactor, withstanding extreme temperatures, pressures, and radiation levels, contributing to the reactor's safe and reliable operation.
Oil and Gas Pipeline Connections: In the oil and gas sector, spiral wound gaskets effectively sealed high-pressure pipelines, exemplified by their leak-free performance in sealing the flange connections of a natural gas pipeline.
The construction of spiral wound gaskets embodies a meticulous process resulting in a highly reliable and versatile sealing solution. The presented engineering cases underscore the effectiveness of these gaskets across diverse and challenging conditions, solidifying their reputation as a trusted and indispensable sealing solution across industries.

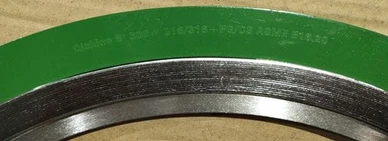

Key Components of Spiral Wound Gaskets
Spiral wound gaskets are a type of mechanical seal used in industrial applications to prevent leakage between two joined objects under compressive loads. These gaskets are commonly used in flanged connections, where they provide effective sealing in high-temperature and high-pressure environments. The key components of spiral wound gaskets include:
1. Metallic Winding Strip
- Typically crafted from stainless steel, the winding strip's V or W profile enables it to adeptly seal mating surfaces under fluctuating pressures and temperatures.
- Options like Inconel, Monel, or Hastelloy may be employed based on specific application requirements.
- The profile facilitates exceptional compressibility and recovery characteristics, ensuring sustained sealing integrity under varying operational conditions.
2. Filler Material
- Positioned between winding strip layers, the filler material forms a crucial sealing barrier between flange surfaces.
- Selection depends on operating conditions, considering factors such as temperature, pressure, and chemical compatibility.
- Commonly used materials include flexible graphite, PTFE, and mica, chosen for their ability to withstand high temperatures and exhibit low creep relaxation.
3. Outer Guide Ring
- Crafted from carbon steel or stainless steel, the outer guide ring serves as a compression stop during installation, preventing over-compression that could lead to premature failure.
- It aids in maintaining the gasket's radial stability and centers it within the flange assembly, preventing displacement during operation.
Construction Process
The construction of a spiral wound gasket initiates with the winding of the metallic strip and filler material. This process involves bending the strip at a specific angle, placing the filler material between layers, and continuously winding to create a spiral configuration. The number of layers and thickness are tailored to meet the application's unique requirements. Post-winding, the outer guide ring is affixed through methods like welding, crimping, or adhesive application, ensuring compliance with industry standards through rigorous quality inspections and testing.
Engineering Cases Illustrating Reliability
Petrochemical Plant Heat Exchangers: Spiral wound gaskets showcased their reliability in heat exchangers, ensuring efficient heat transfer by withstanding high temperatures, pressures, and aggressive chemicals.
Power Generation Steam Valves: Sealing high-pressure steam valves in a power generation facility, spiral wound gaskets demonstrated resilience under extreme conditions, maintaining a tight seal for safe and efficient plant operation.
Nuclear Reactor Primary Coolant Loop: Deployed in the nuclear industry, spiral wound gaskets sealed the primary coolant loop of a reactor, withstanding extreme temperatures, pressures, and radiation levels, contributing to the reactor's safe and reliable operation.
Oil and Gas Pipeline Connections: In the oil and gas sector, spiral wound gaskets effectively sealed high-pressure pipelines, exemplified by their leak-free performance in sealing the flange connections of a natural gas pipeline.
The construction of spiral wound gaskets embodies a meticulous process resulting in a highly reliable and versatile sealing solution. The presented engineering cases underscore the effectiveness of these gaskets across diverse and challenging conditions, solidifying their reputation as a trusted and indispensable sealing solution across industries.
