PTFE Filled Spiral Wound Gasket, ASME B16.20, 2 Inch, 150 LB

Key Specifications / Features

Model No.: FGBK-23-G-154 Hits: 4

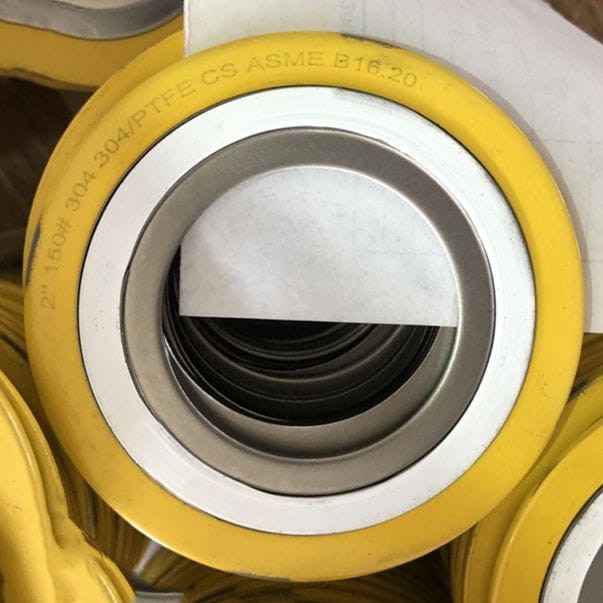

Our PTFE Filled Spiral Wound Gaskets, manufactured in China, conform to the ASME B16.20 standard. With a size of 2 inches and a Class 150 LB rating, these gaskets are specifically designed for B16.5 flange sealing applications. The gaskets feature an SS 304 inner ring and a CS outer ring, ensuring reliable performance and effective sealing. Trust in the quality and precision of our products for your flange sealing needs.
Request a quote

Detail Information


Product Name: PTFE Filled Spiral Wound Gasket
Size: 2 Inch, DN50
Pressure Rating: Class 150 LB, PN20
Material of Ring: Stainless Steel 304 Inner and Carbon Steel Outer Ring
Material of Strip: Stainless Steel 304
Filler: PTFE Filler
Manufacture Standard: ASME B16.20
Design for B16.5 Flange
