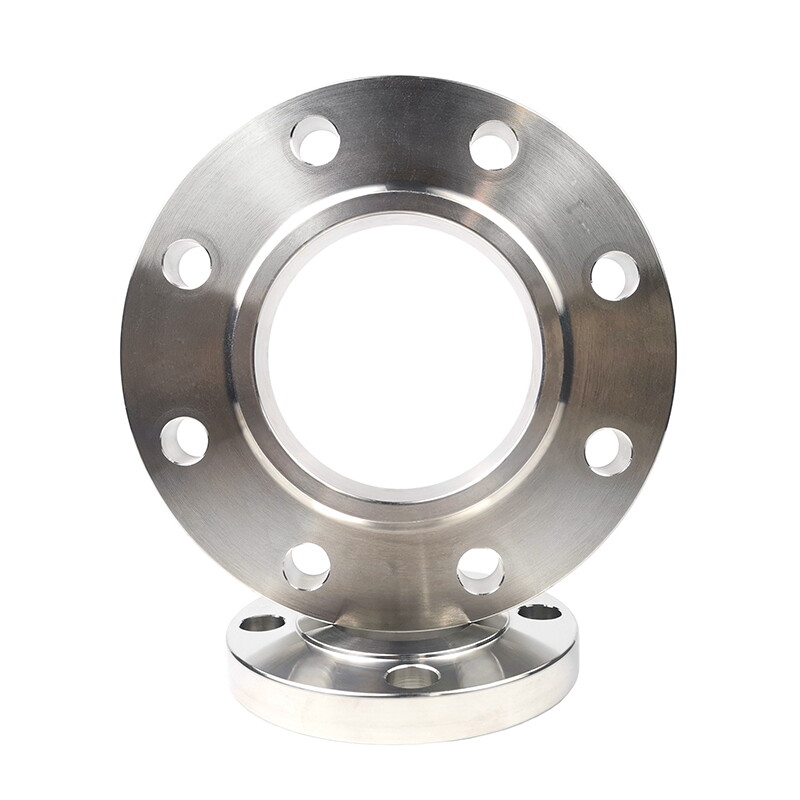

SS 304 Slip On Flange, ASTM A182 F304, 2 Inch, DN50, 150 LB
Key Specifications / Features
Model No.: FGBK-23-F-71
Hits: 0
Introducing our SS 304 Slip On Flange Manufacturer, specializing in top-quality flanges crafted from ASTM A182 F304 stainless steel. Our flanges adhere to ANSI B16.5 standards and are designed for 2-inch (DN50) fittings, rated for Class 150 LB and PN20 applications. These flanges are ideal for direct connection to equipment or pipe via fillet welds, offering secure and efficient installation. Trust our products to provide reliable performance and durability in various industrial applications.
Request a quote
Tags
Detail Information
Product Name: SS 304 Slip On Flange
Type: Slip On Flange
Size: 2 Inch, DN50
Pressure: Class 150 LB, PN20
Process Method: Forging
Face: Raised Face
Manufacture Standard: ANSI B16.5
Material: ASTM A182 F304, Stainless Steel 304
Application: Connected to Equipment or Pipe by Fillet Weld Directly.
