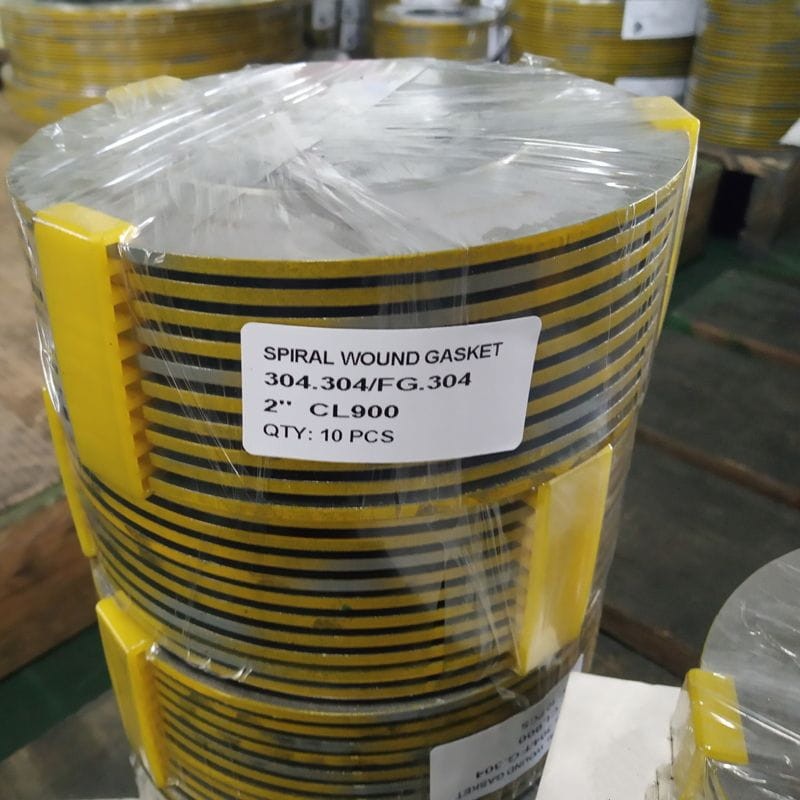

SS 304 Spiral Wound Gasket, ASME B16.20, 2 Inch, 900 LB
![SS 304 Spiral Wound Gasket, ASME B16.20, 2 Inch, 900 LB SS 304 Spiral Wound Gasket, ASME B16.20, 2 Inch, 900 LB](https://img.jeawincdn.com/resource/upfiles/216/images/products/gaskets/resize/c74d8e43324f6c797477556a9d7b4472/ss-304-spiral-wound-gasket-asme-b16-20-2-inch-900-lb_42CzaN-800x800.webp)
Key Specifications / Features
Model No.: FGBK-23-G-142
Hits: 0
Our Stainless Steel 304 Spiral Wound Gaskets are expertly manufactured in accordance with ASME B16.20 standards. Designed for superior performance, these gaskets are 2 inches in size (DN50) and have a Class 900 LB (PN150) rating. Featuring both inner and outer rings made from high-quality SS 304, they are filled with a reliable graphite filler for effective sealing.
Request a quote
Tags
Detail Information
Product Name: Stainless Steel 304 Spiral Wound Gasket
Type: Spiral Wound Gasket
Size: 2 Inch, DN50
Pressure Rating: Class 900 LB, PN150
Manufacture Standard: ASME B16.20
Material of Ring: SS 304 Inner and Outer Ring
Material of Strip: Stainless Steel 304
Filler: Graphite Filler
