Full Analysis of Flange Gaskets: Material Selection and Installation Guide
Graphite composite gaskets have become key components for industrial connections due to their excellent sealing performance under high temperature and high pressure. Selection should take into account the characteristics of the medium and installation and maintenance, while intelligent and environmentally friendly innovation will lead the industry in the future.
1. Basic knowledge and application of gaskets
Basic concept of flange gaskets
The flange gasket is an indispensable sealing component in pipeline and equipment connections. It is designed to fill between two flange sealing surfaces and plays a crucial role. Flange gaskets are used for connecting pipelines and equipment, and their main function is to prevent medium leakage and compensate for installation errors. The sealing mechanism relies on the pre-tightening force of the bolt, which causes the gasket to undergo necessary elastic or plastic deformation, filling the micro-gaps between the sealing surfaces and establishing an effective sealing barrier. Due to the micro- advantages mentioned above, flange gaskets are widely used in the connection of pipelines, valves, and pressure vessels in multiple industries.
Classifications of graphite composite gaskets
The graphite composite gasket, a special type of flange gasket, has been widely used in multiple fields due to its unique properties. This type of gasket is usually composed of graphite material and other reinforcing materials, which combines the excellent self-lubricating properties of graphite with the strength of other materials, thus enabling it to maintain excellent sealing performance in high temperature and high pressure environments. The graphite composite gasket is made of graphite and other reinforcing materials, and has excellent sealing performance under high temperature and high pressure. According to different materials, it can be divided into non-metallic, semi metallic, and metallic gaskets.
2. Selection and installation points of gaskets
Selection factors and standards

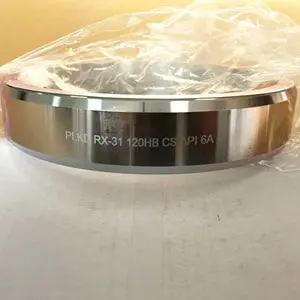

The selection of gaskets is influenced by the characteristics of the medium, pressure rating, and flange type. For corrosive environments, PTFE, Fluorine rubber and stainless steel coated gaskets are preferred. For toxic or flammable and explosive media, high air tightness gaskets should be selected. Under high pressure conditions, metal ring gaskets are an indispensable choice.
Installation and maintenance of gaskets
In the selection process of gaskets, we not only need to consider the economy and adaptability to working conditions, but also need to pay attention to the ease of installation and maintenance. Installation should ensure the alignment of flanges and gaskets, and follow the appropriate bolt tightening sequence and torque. During installation, tools should be used to avoid damage to the gasket and ensure proper torque control. In addition, regular inspection of the operating status and maintenance, such as cleaning the flange surface and readjusting bolts, can effectively extend the service life of the gasket.
3. Industry Trends and Future Prospects
Material substitution and intelligent development
With the advancement of technology, new materials such as graphite wrapped gaskets are gradually replacing traditional metal gaskets. These materials not only have excellent physical properties, but also increase sealing requirements. Meanwhile, intelligent gaskets enhance maintenance convenience and equipment safety through sensor technology. For example, by embedding shape memory alloy wires or sensors, the working status of the gasket can be monitored and fed back in real time.
Environmental Innovation and Green Manufacturing
The gasket industry is committed to promoting biodegradable materials and metal recycling technologies to achieve efficient resource utilization and environmental protection. New materials such as biodegradable gaskets made of bio based rubber have been developed to reduce environmental pollution and enhance sustainable development capabilities through green manufacturing.
