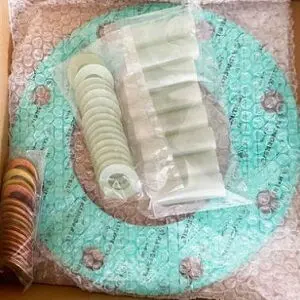

Rubber Gaskets for Flange Connections: A Comprehensive Guide
In critical pipeline systems—from petroleum and chemical processing to food and pharmaceutical industries—rubber flange gaskets play a vital role in ensuring leak-free operations. Their corrosion resistance, pressure tolerance, and flexibility make them indispensable for maintaining the integrity of industrial pipelines. Proper selection, installation, and maintenance of these gaskets are crucial for achieving a decade-long sealing lifespan and ensuring operational safety.
As a fundamental component in industrial connection systems, rubber flange gaskets are widely used in pipeline networks, mechanical equipment, and engineering installations. This article provides an in-depth exploration of their material properties, applications, selection criteria, installation techniques, and maintenance practices, serving as a practical reference for engineers and industry professionals.
I. Material Characteristics of Rubber Flange Gaskets
Rubber flange gaskets are primarily manufactured from natural rubber, synthetic rubber (e.g., nitrile rubber/NBR, neoprene/CR, EPDM), and reinforcing additives. These materials impart unique physical and chemical properties, making them suitable for diverse industrial environments:
Corrosion Resistance
Resists degradation from acids, alkalis, salts, and aggressive chemicals, making them ideal for chemical processing, oil & gas, and wastewater treatment. Specialized formulations (e.g., fluorocarbon rubber/FKM) offer enhanced resistance to solvents and hydrocarbons.
Superior Sealing Performance
High elasticity and compression recovery ensure a tight seal, preventing fluid or gas leakage under varying pressures. Conforms to flange surface irregularities, improving sealing efficiency.
Wide Temperature Tolerance
Standard rubber gaskets operate between -40°C to 120°C, while high-performance variants (e.g., silicone or fluorocarbon) withstand -60°C to 250°C.
High Pressure Resistance
Reinforced rubber gaskets can endure static and dynamic pressures up to 300 psi (20 bar) or higher, depending on material and design.
Vibration Damping & Noise Reduction
Absorbs mechanical vibrations and reduces pipeline noise, enhancing system stability and longevity.
II. Key Application Areas
Rubber flange gaskets are utilized across multiple industries due to their versatility and reliability:
Petrochemical & Oil/Gas
Seals crude oil, natural gas, and chemical transport pipelines, preventing hazardous leaks.
Used in refineries, offshore platforms, and storage tanks.
Water & Wastewater Treatment
Ensures leak-proof connections in filtration systems, pumps, and sewage pipelines.
Resists chlorine, ozone, and biological contaminants.
Food & Pharmaceutical Processing
Complies with FDA, NSF, and EU standards for hygiene.
Used in beverage, dairy, and pharmaceutical fluid handling systems.
Power Generation & HVAC
Seals cooling water, steam, and refrigerant lines in power plants and HVAC systems.
Marine & Aerospace
Withstands saltwater corrosion and extreme temperature fluctuations.
III. Selection Guidelines for Optimal Performance
Choosing the right rubber flange gasket involves evaluating:
Medium Compatibility
Assess chemical composition, pH levels, and temperature to select a chemically resistant material.
Flange Specifications
Match gasket dimensions to flange size (DN/PN ratings), face type (flat, raised, RTJ), and bolt pattern.
Environmental Conditions
Consider UV exposure, ozone levels, and mechanical stress (e.g., vibrations, thermal cycling).
Service Life & Maintenance Requirements
Opt for long-lasting materials (e.g., EPDM for outdoor use, FKM for high-temperature oils) to minimize replacements.
IV. Proper Installation Techniques
Incorrect installation is a leading cause of gasket failure. Follow these best practices:
Surface Preparation
Clean flange faces thoroughly, removing rust, debris, and old gasket residue.
Gasket Inspection
Check for cracks, hardening, or deformation before installation.
Alignment & Placement
Center the gasket precisely; misalignment causes uneven compression and leaks.
Bolt Tightening Sequence
Use a cross-pattern tightening method in 3 stages (30%, 70%, 100% torque) to ensure uniform pressure distribution.
Post-Installation Testing
Conduct pressure tests (hydrostatic/pneumatic) to verify seal integrity.
V. Maintenance & Lifespan Extension
Routine Inspections
Check for wear, extrusion, or chemical degradation every 6 to 12 months.
Cleaning & Lubrication
Remove dirt and grease; use silicon-based lubricants if reassembling.
Avoid Over-Tightening
Excessive torque cracks the gasket or warps the flange.
Proper Storage
Keep spare gaskets in cool, dark, and dry conditions away from ozone sources.
Documentation
Maintain logs of installation dates, pressure tests, and replacements for traceability.
VI. Conclusion
Though small in size, rubber flange gaskets are critical for safety, efficiency, and regulatory compliance in industrial systems. Advances in polymer science and manufacturing continue to enhance their durability and performance, expanding their applications in green energy, biotechnology, and smart manufacturing.
For engineers and maintenance teams, staying updated on material innovations and best practices ensures optimal system performance. By adhering to proper selection, installation, and maintenance protocols, industries can achieve leak-free operations, reduced downtime, and long-term cost savings.
